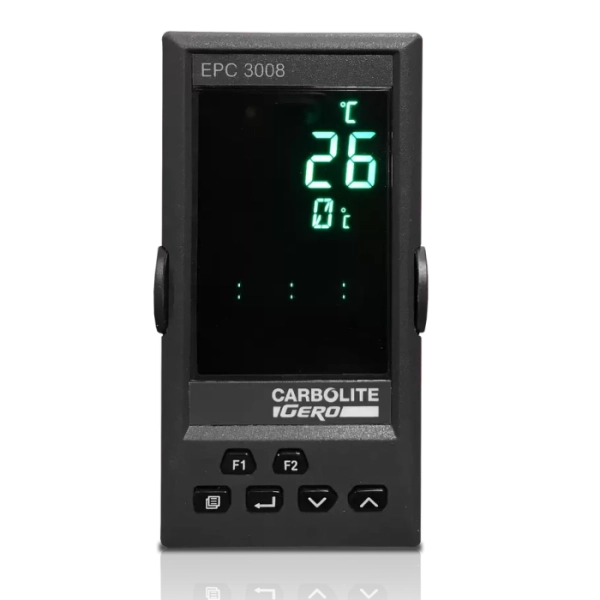

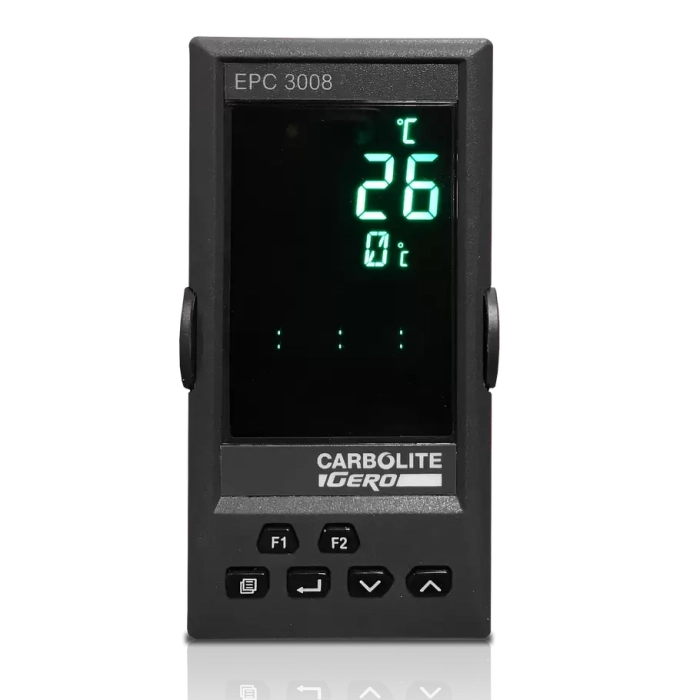

EPC3008P10 — Programmable Temperature Controller with Ethernet
Артикул: EPC3008P10
This controller offers programmable control in which 24 segments may be set as ramp, step or dwell and may also be configured to control relays. Ethernet communication is fitted as standard. The EPC3008P10 provides a comprehensive information display. If precise temperature control is required over a wide range of temperatures, the EPC3008P10 allows the use of multiple PID terms (gain scheduling). This feature is not enabled as standard, but can be activated on request. The EPC3008P10 can also store and retrieve 10 programs.
Standard features
- 10 program with 24 segments
- Ramp, dwell, step, call, end segments
- 3 x relays
- Ethernet communication fitted
- certified for cybersecurity communications robustness
Technical Specifications
| FURNACE CONTROL | |
| Number of programs | 10 |
| Number of segments per program | 24 |
| Relay operated options (eg. solenoid valve, cooling fan, door lock, etc.) max. | 3 |
| Cascade control | Optional |
| Auto tune | yes |
| USER INTERFACE | |
| Screen Resolution | 4.5 digits + 5 character, 16 segment text + 16 segment scrolling text |
| Screen size (inch) | 2,5 |
| Interface | 4 Buttons |
| Start time configurable | no |
| Real-time clock with calendar | no |
| Data logging of process data with USB-flash drive | no |
| Data logging to secure file | no |
| Programming and data logging software | optional |
| User levels | yes |
| Program names displayed | program number |
| Choice of languages | 5 |
| COMMUNICATIONS | |
| Ethernet communication connection | yes |
| Certified for cybersecurity communication robustness | yes |
| USB connection (for data export) | no |
