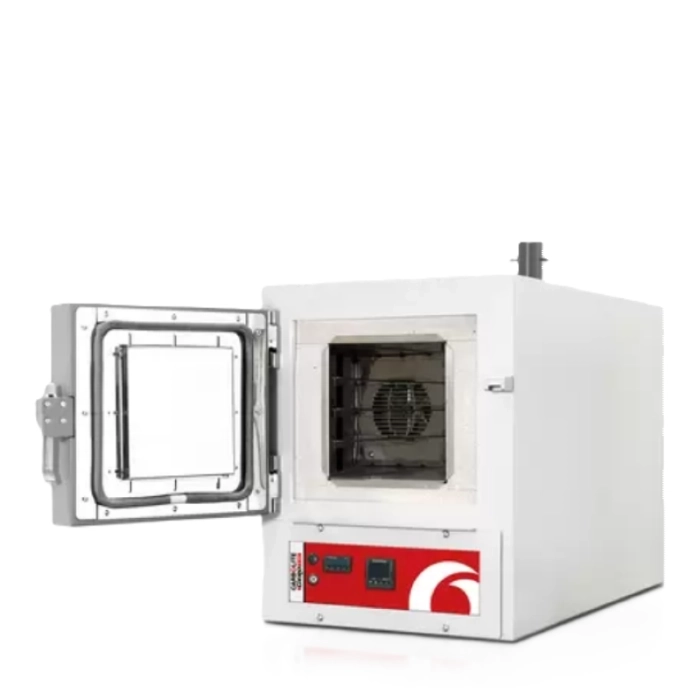

Air recirculating oven HRF

The 750 °C HRF air recirculation ovens comprise two bench-mounted models and two floor-standing models. Equipped with powerful fans and horizontal air-guides these models are intended to provide rapid heating with high thermal transfer to the chamber contents and high uniformity within the chamber. These designs frequently form the base from which custom designed chambers with non-standard sizes or control configurations are made. HRF ovens are often supplied with modifications to enable heat treatment within AMS 2750F Nadcap compliant production environments.

STANDARD FEATURES

• 750°C maximum operating temperature
• 22, 45, 112 or 324 litre chamber volumes
• Wire elements located in both sides of the chamber
• Stainless steel liner
• Combination of low thermal mass and refractory board insulation.
• Programmable EPC3016P1 controller

OPTIONS (SPECIFY THESE AT TIME OF ORDER)

• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Additional sets of shelves & runners
