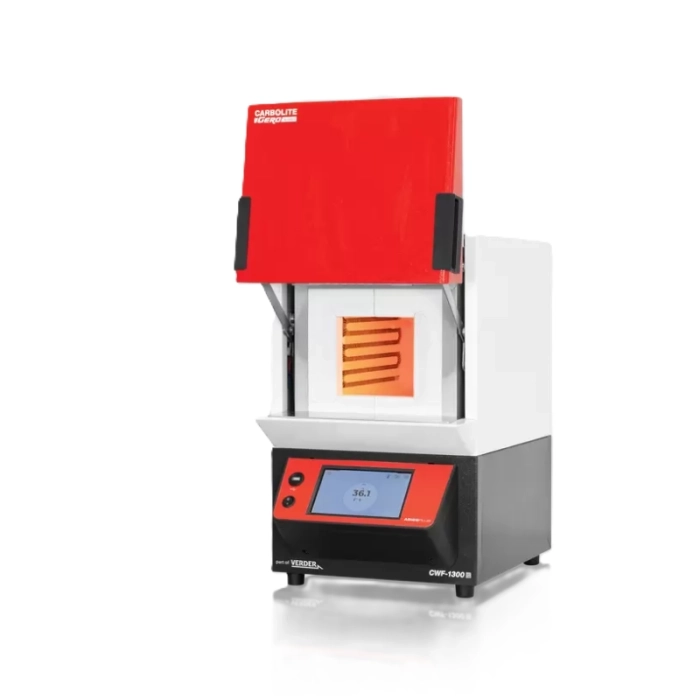

AriesPlus Temperature Controllers for Chamber Furnaces
Артикул: AriesPlus
The AriesPlus touch screen controllers offer programmable control in which 99 segments may be set as ramp, step or dwell and may also be configured to control relays.
The AriesPlus series provides a capacitive touch screen interface giving intuitive access to a comprehensive menu for selection and editing of program profiles; scheduling of programs at a defined day and time; data logging of setpoint and actual temperature; localization of language; user level security.
The AriesPlus series can also store and retrieve 50 unique program profiles. Data-logging is to internal memory which can be downloaded to the adjacent USB port or downloaded to a PC if connected on a network. Ethernet connectivity is fitted as a standard feature.User level functionality

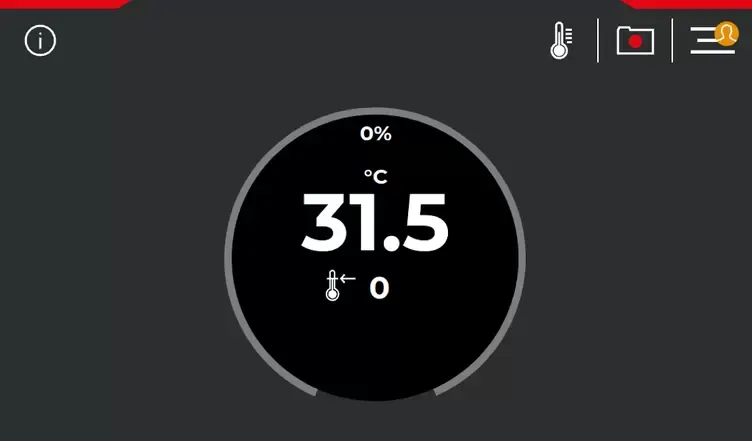

- 7.0’’ colour capacitive touch screen

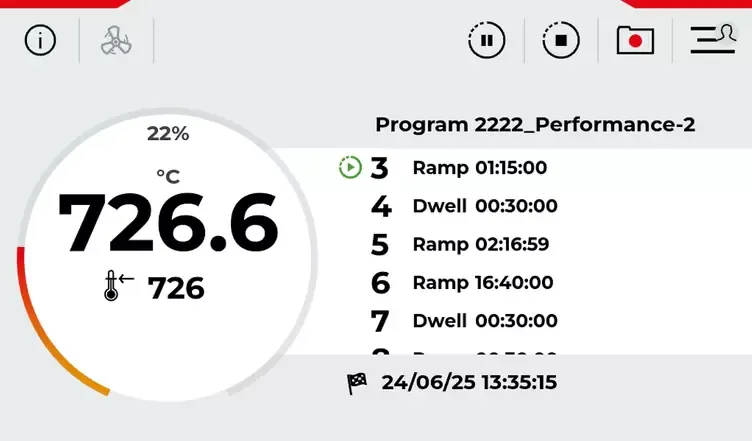

- 50 programmes with 99 segments
- Live process graph display

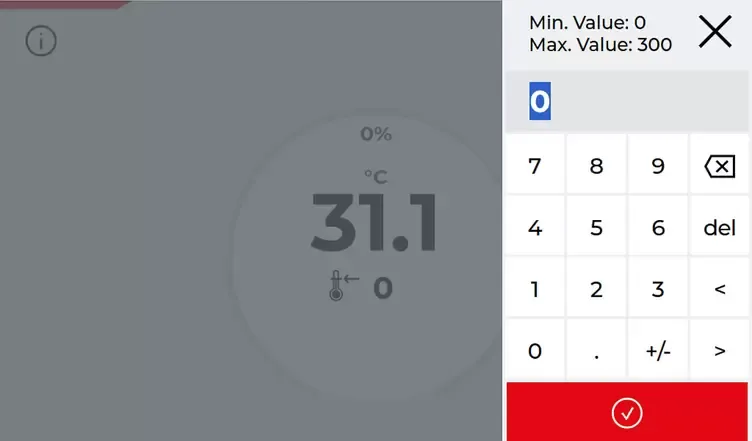

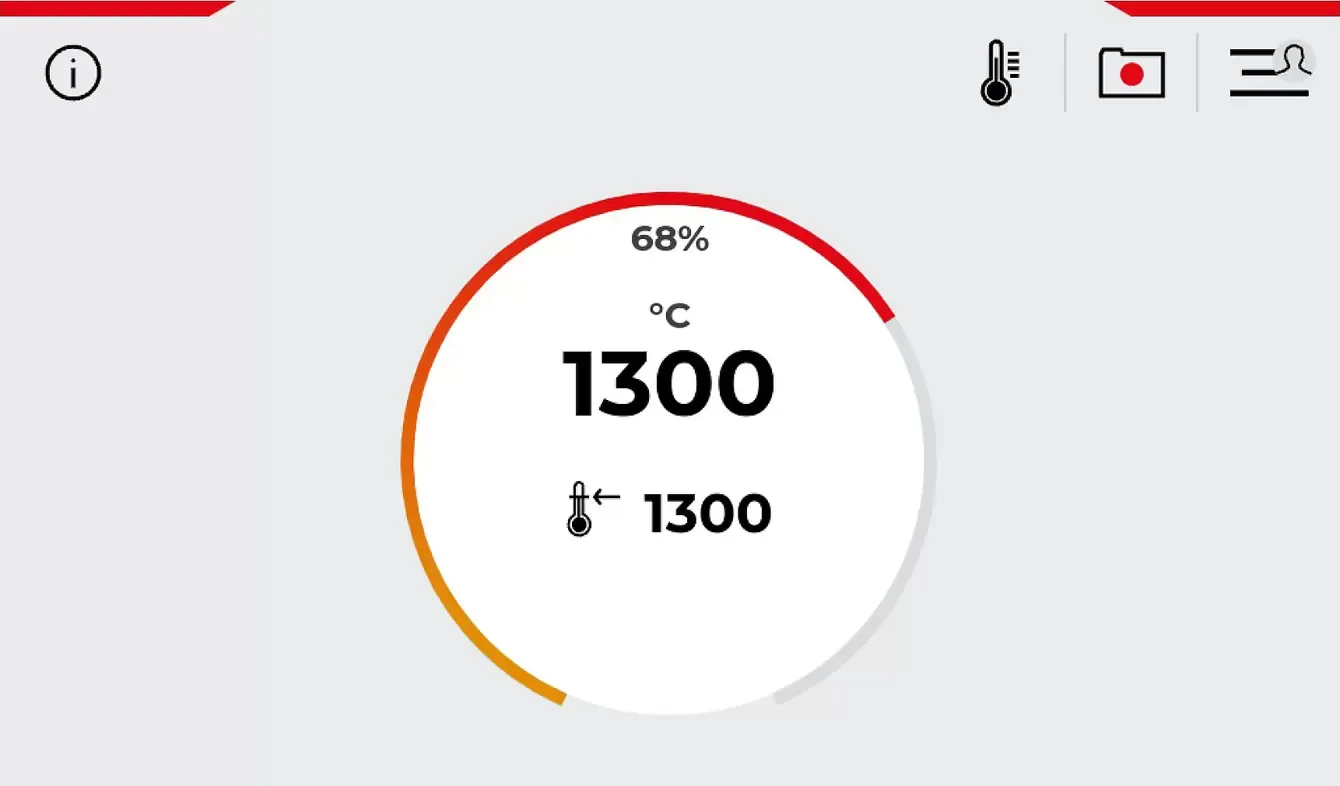

- Setpoint & program profile control

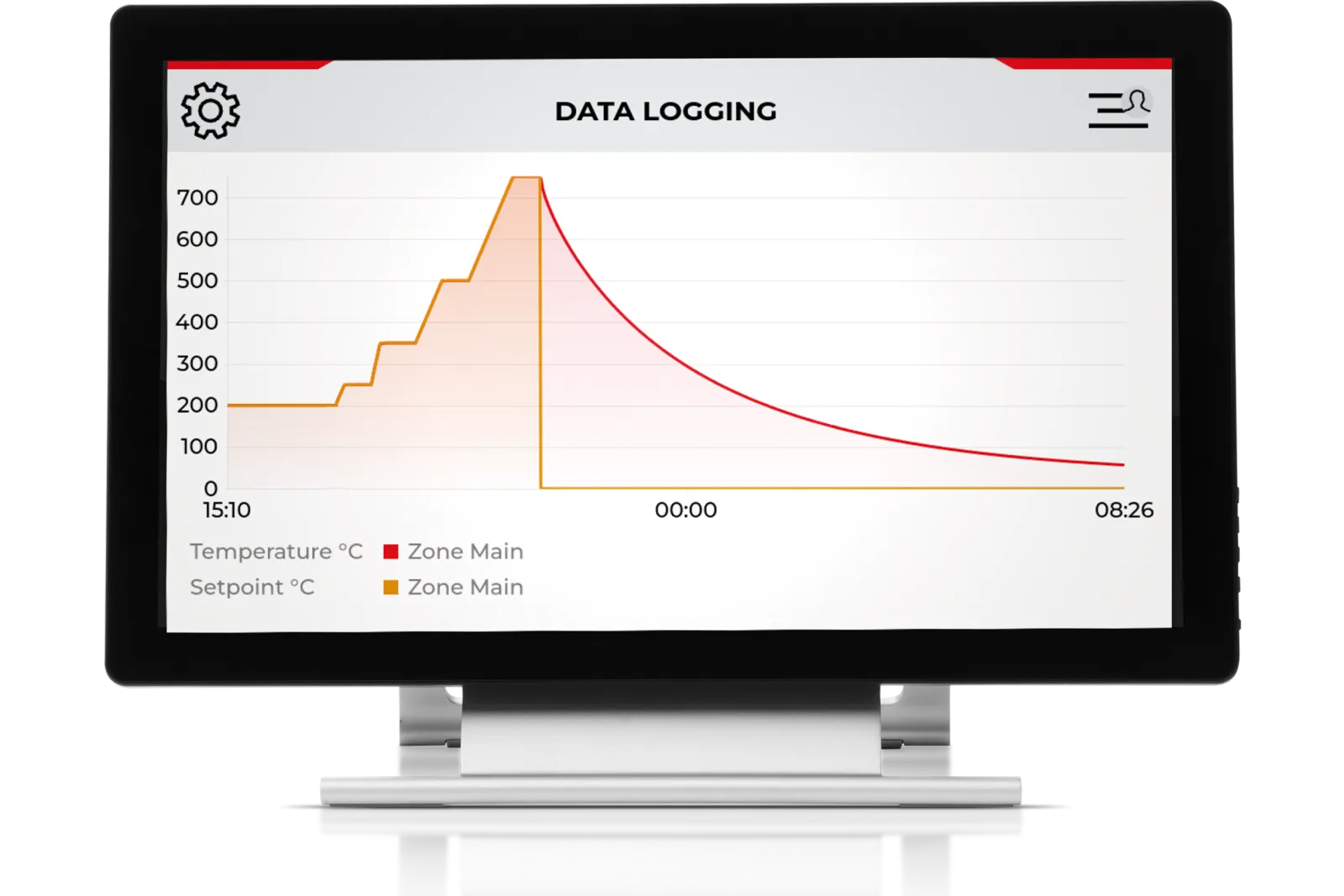

- Data logging to internal memory
- 7-day time scheduler
- Ethernet connectivity
- Remote connection via a browser
- Panel mounted USB socket
- User level security
- Settings including 9 languages
Single zone
Program segment events
- Program segment events activate options like switching gas flows or starting a cooling fan.

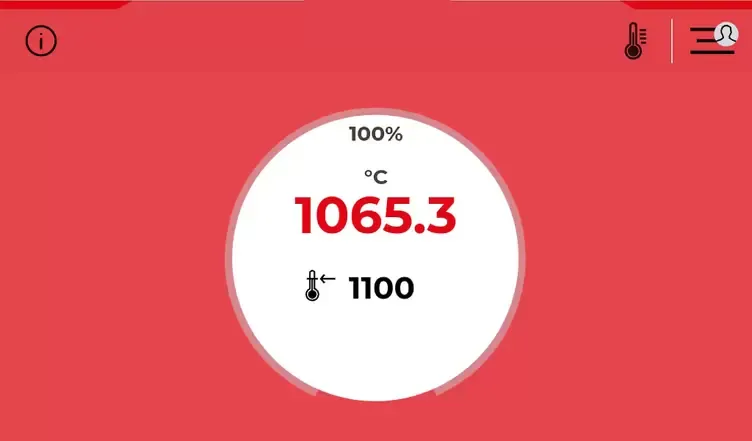

Alarm activation
- Program segment events activate options like switching gas flows or starting a cooling fan.
Over-temperature control
- Integrated independent over-temperature protection with clear alarm indication; recommended for unattended operation and valuable load protection.
Remote network connection
Connect to the AriesPlus controller using any computer browser (no software installation necessary).
- Remote viewing
- Login and navigate
- Create and edit programs
- Data-Logging download to PC
TuneAriesPlus Features ThermoTune
Carbolite is proud to announce the launch of our latest innovation, the AriesPlus temperature controller, featuring the revolutionary ThermoTune . ThermoTune is designed to provide exceptional control across a wide temperature range, ensuring precision and reliability for all your thermal processing needs.
