SST X-ray Tube | Reliable Source of X-ray Radiation for Quality Control and Spectroscopy | Makrolab LTD

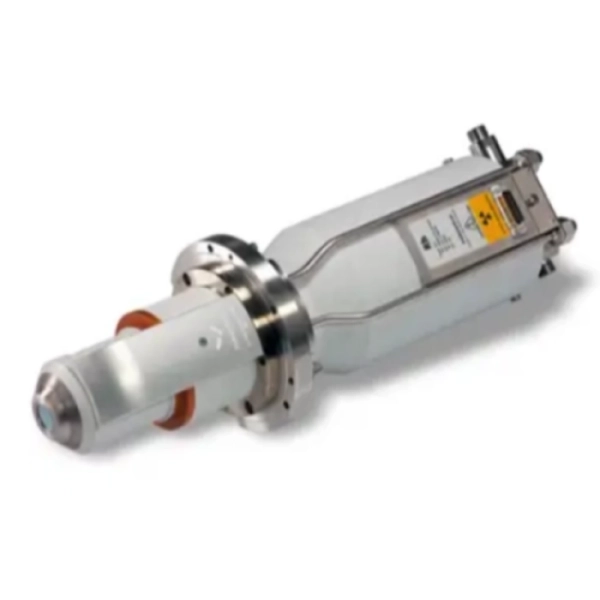

Super Sharp Tube (SST) for XRF Spectrometer
The Super Sharp Tube (SST) is a high power metal-ceramic end window tube, designed and optimized for Malvern Panalytical's high-end XRF spectrometer series Axios, MagiX FAST, PW2830 and their predecessors, MagiX PRO, MagiX, PW2404, PW2400, PW2606, PW2600 and PW2800.
Features
High overall intensity and light element performance
The SST has a high overall intensity and a superior performance on light elements, due to:
Close optical coupling with sharp tube nose
High tube power (1 - 4kW versions)
High emission current (up to 125mA)
Thin beryllium window (75 µm) Various anode types available
Long tube life and high stability
The design of the SST tube is based on ceramic technology and proven cathode technology. This ensures high short-term stability of X-ray output and long tube life.
