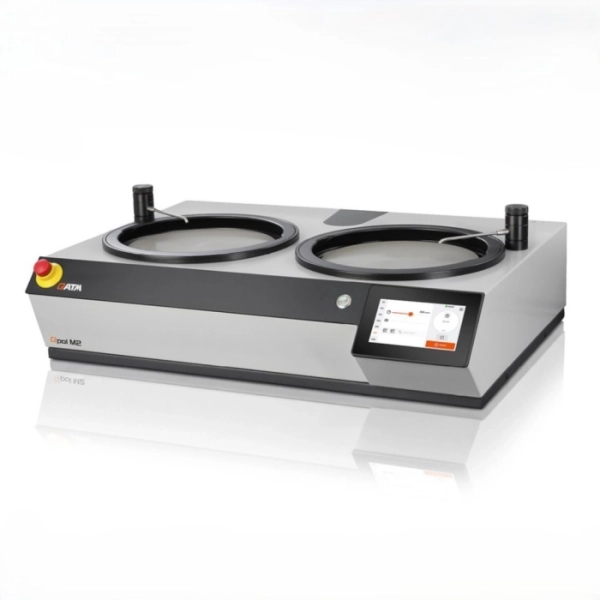

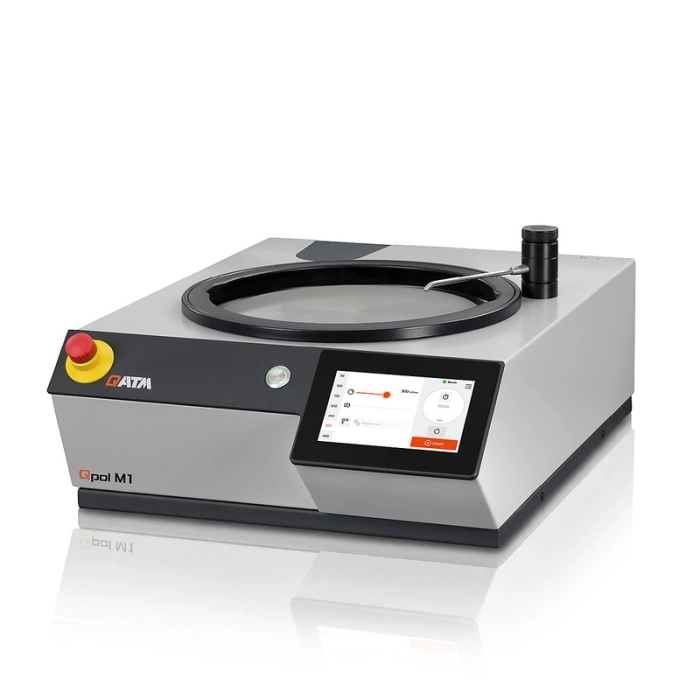

Qpol M1 & M2 Manual Grinding and Polishing Machines for Metallography

The Qpol M1 and M2 are manual, single wheel or twin wheel grinding and polishing machines for the materialographic laboratory and are suitable for working wheels Ø 200, 250 and 300 mm. The powerful drive with speed control enables the processing of a wide variety of materials. The robust device, equipped with high-quality technology, has a very smooth running and delivers the best preparation results.

Product Advantages

Features

Durable and reliable

Machine body made of a sturdy welded aluminum construction with a high-quality, durable powder coating

• Extremely smooth operation thanks to a low-vibration design
• Powerful speed-controlled drive with optimal performance, suitable even for larger samples
• The impact-resistant plastic tub offers impressive durability, corrosion resistance, and easy cleaning

Simple cleaning system

Single-Disc-Design: Easy removal of all components and easy access

• The splash guard ring and working wheel can be removed with minimal effort, thereby reducing setup and cleaning times
• The tub insert (plastic inlay) is easy to replace or clean to remove abrasion and residue from the Suspension


Sturdy, pull-out faucet

Easy and thorough cleaning of the work area and the grinding tray

• Cleaning Boost function: removes residual liquid from the grinding/polishing media (dries at 750 rpm in 3 seconds)
• The water valve is activated automatically at the start and end of the preparation process
• Sturdy faucet with a flexible hose extension

Work safety

High operational safety thanks to a generously sized bowl area and a loosely mounted splash guard ring

• The small gap between the splash guard ring and the working wheel ensures safe operation
• Pressing the emergency stop button immediately stops all moving parts

The ergonomically shaped splash guard significantly reduces splashing and can be used as a comfortable hand rest during longer procedures

Grip recesses allow for the replacement of grinding/ polishing media even when the ring is in place

Option: Qdoser dosing systems

Can be optionally equipped with semi-automatic or software-controlled dosing systems for high process flexibility

• Qdoser GO: Fully automatic, software-controlled dispensing system with 4 easily removable and refillable dispensing bottles for reproducible results (magnetic stirring function available as an option)
• Qdoser ONE: Dropper bottle for easy and continuous dosing

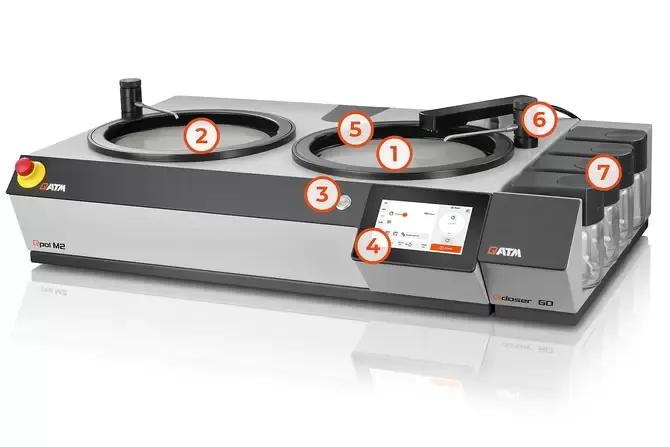

Superiority in detail

1. Working wheels: Ø 200/250/300 mm

• Single-disc design for easy disc replacement

2. Optional second cutting disc

• Less setup time between steps

3. Simple one-button operation

• Durable stainless steel start button for directly starting/ stopping the machine

4. Clear parameter settings

• Tried-and-true methods with a new design

5. Ergonomic splash guard ring

• Prevents splashing and provides an ergonomic hand rest

6. Automatic water valve

• Water can be automatically activated at the start and end of the process

7. Optional dosing system

Allows for two-handed polishing and ensures optimal application
