QATM DCM 1000 Hardness Tester for Direct CHD and Surface Hardness Testing
QATM DCM 1000 is a specialized hardness tester for the direct determination of case hardening depth, or CHD, and for surface hardness testing of metal specimens. The direct measurement method eliminates the need for time-consuming preparation of polished cross-section specimens and significantly accelerates specimen inspection.
The case hardening depth can be determined within one minute. This efficient technology enables one hundred percent batch testing and provides a rapid, non-destructive indication of whether a specimen has an inhomogeneous hardness distribution within its surface zone.
In addition to direct CHD measurement, the QATM DCM 1000 supports all Rockwell hardness testing methods in accordance with DIN EN ISO and ASTM standards. Case hardening depth results are evaluated using dedicated software based on the principle of former Briro E systems.
Key Advantages of the QATM DCM 1000
- direct measurement of case hardening depth CHD;
- surface hardness testing of metal specimens;
- case hardening depth determination within one minute;
- no preparation of polished cross-section specimens required;
- suitable for one hundred percent batch testing;
- rapid, non-destructive indication of inhomogeneous surface-zone hardness distribution;
- all Rockwell hardness testing methods according to DIN EN ISO and ASTM;
- software-based evaluation of CHD measurement results;
- cross laser for accurate test-point location;
- barcode and QR code reader connectivity.
QATM DCM 1000 Versions

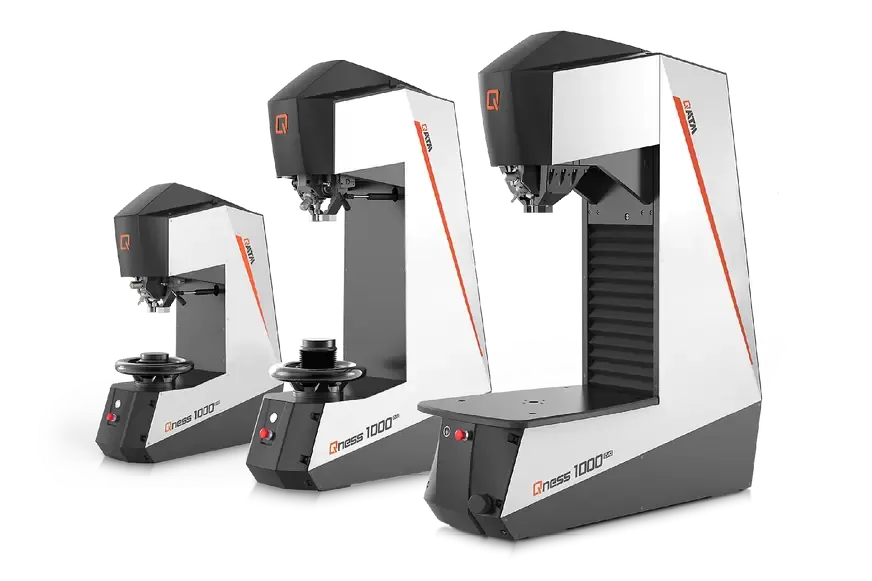

| Model | Configuration | Test height |
|---|---|---|
| DCM 1000 CS | Spindle and height-adjustable test table | 175 mm |
| DCM 1000 C | Spindle and height-adjustable test table | 395 mm |
| DCM 1000 E | Large test table with an electrically movable test head | 450 mm |
Technical Specifications of the QATM DCM 1000
| Measurement principle | Direct CHD measurement and surface hardness testing |
| Equivalent method | Equivalent to the former Briro E method |
| CHD determination | Direct testing without preparing a polished cross-section specimen |
| Hardness testing methods | All Rockwell methods according to DIN EN ISO and ASTM |
| Test height of DCM 1000 C | 395 mm |
| Projection | 220 mm |
| Result evaluation | Software-based evaluation according to the principle of former Briro E systems |
| Control system | General PC version with monitor |
| Limit hardness for CHD determination | 525, 550 or 600 |
| CHD measuring range | 0.2 to 1.4 mm for CHD 525, CHD 550 and CHD 600 |
| Test-point positioning | Cross laser |
| Data transfer | Data connections |
| Specimen identification | Barcode and QR code reader |
| Optional equipment | Pedestal, accessories, prisms and test tables available on request |
Applications of the QATM DCM 1000
The QATM DCM 1000 hardness tester is designed for direct case hardening depth measurement, surface hardness control and Rockwell testing of metal specimens. The system supports efficient batch inspection without the time-consuming preparation of polished cross-section specimens.
