Heating Microscope Upgrade to EMI III
Артикул: Heating Microscope Upgrade to EMI III
EMI III is the successor to the EMI 2 image analysis software from Hesse Instruments. Customers who already have a heating microscope from Hesse Instruments or Leitz/Leica with EMI 2 can upgrade their system to EMI III easily.

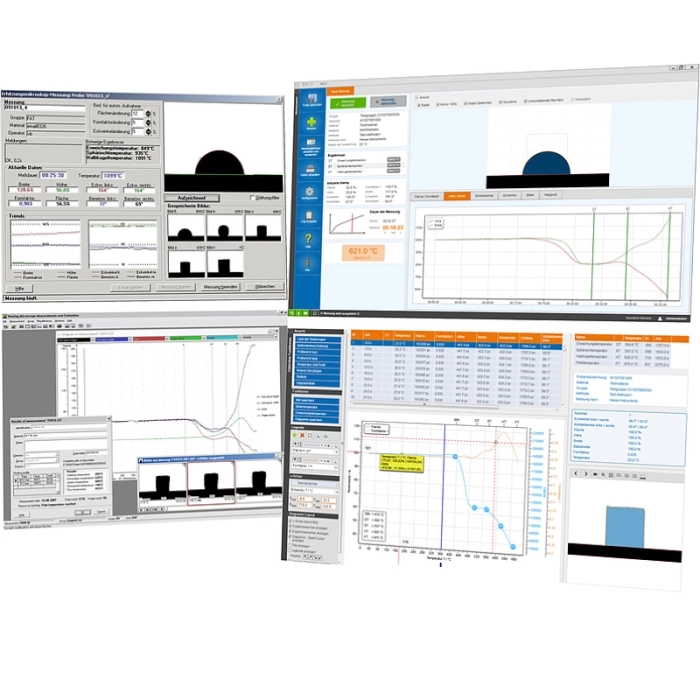

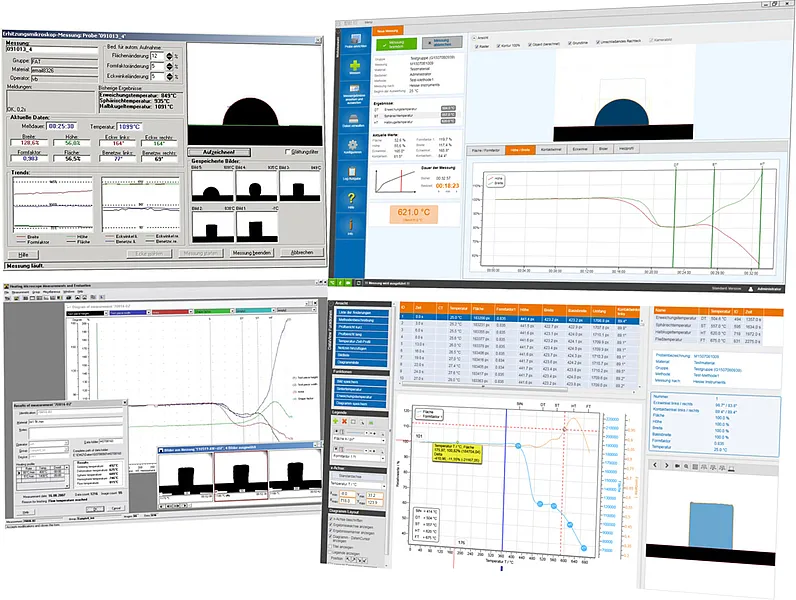

Comparison of EMI 2 and EMI III
The EMI III heating microscope software was developed based on Hesse Instruments’ tried-and-tested EMI 2 image analysis software. The full functionality of EMI 2 has been included in EMI III, and the range of functions has been expanded to boost ease-of-use and to provide additional options for the preparation, performance and evaluation of measurements.
In addition to the expanded range of functions, EMI III improves upon EMI 2’s performance considerably. The software has been designed for current operating systems and hardware and therefore permits, among other things, more accurate resolution during image analysis and greater storage capacity for silhouettes of the test piece.
Scope of supply and installation of upgrade
In order to guarantee the improved performance of EMI III, the upgrade to this version includes not only the EMI III heating microscope software but also the following hardware and software components:
Measuring station computer: EMI III comes installed on a preconfigured and ready-to-use measuring station computer. In addition to the operating system and heating microscope software, the computer is equipped with all of the necessary hardware interfaces.
Network-compatible CCD camera: A more powerful camera with faster transmission delivers images in the necessary resolution for the newly developed evaluation algorithms. The camera is compatible with the existing macro lens of the EM201.
Temperature acquisition device or ModBus module: Depending on the needs and conditions, the Hesse Instruments furnace control is equipped with a new temperature acquisition device or a new ModBus module for communication with EMI III.
EMI 2 – Data import module: The upgrade to EMI III includes a data import module that allows you to import and examine EMI 2 measurements in EMI III.
The upgrade installation is designed and documented so that you can easily carry out the process yourself. After a single adjustment procedure, the upgraded heating microscope is ready for use.
Benefits at a glance
Improved performance
State-of-the-art hardware and software
- High-performance image analysis
Advanced evaluation algorithms
- Exact determination of the outline of test pieces
- Finely resolved analysis as part of automatic image analysis
Network-compatible CCD camera
- Faster, digital transmission of recorded images
- Lossless conversion
- Improved image quality
Improved efficiency
Clear, structured user interface
- Straightforward and intuitive operation
- Short training periods for staff
- Clear presentation of measurements and measurement results
Wider range of functions than EMI 2
- Easier operation
- Enhanced control during the preparation and evaluation of measurements
- Easier and more-detailed documentation of results
Methodological management
- Time savings during measurement preparation
- Reduction of systematic errors
Automatic evaluation and documentation
- Optimum and rapid evaluation of measurements
- Automatic generation of test reports
Interactive display of measurement results
- Linking of graphs, images and numerical values
- Rapid individual evaluation
- Custom design of graphs and test reportsя
Control and flexibility
State-of-the-art hardware and software
- High-performance image analysis
Advanced evaluation algorithms
- Exact determination of the outline of test pieces
- Finely resolved analysis as part of automatic image analysis
Network-compatible CCD camera
- Faster, digital transmission of recorded images
- Lossless conversion
- Improved image quality
