Cutting robot QCUT 600 BOT
Артикул: QCUT 600 BOT

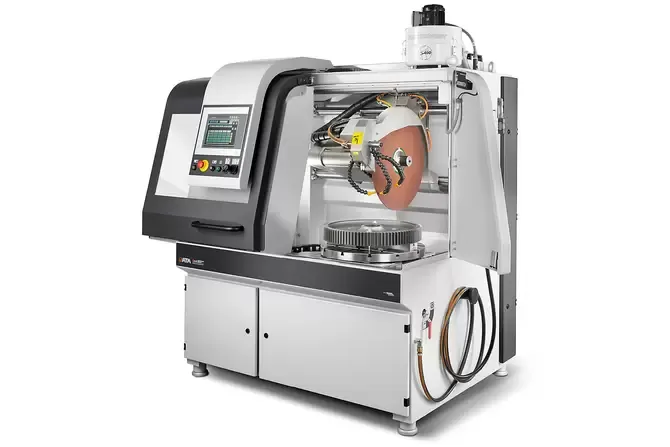

The Qcut 600 BOT is a fully automatic cutting robot with max. 5 axes for the use of cutting discs with a size of up to 610 mm / 24“.
The Qcut 600 BOT cutting robot opens up new possibilities with its 5 axes (X-, Y-, Z-, B-, C-axis) and the generously sized machine table (Ø 600 mm) opens up new application possibilities. The automatic travel (X-axis) and cross-cut (Y-axis) reach speeds of up to 80 mm/sec thanks to its highly dynamic drives.
The rotary table (B-axis) has a swivelling range of 360° and can be modularly extended with an additional rotary axis (C-axis - swivel range of combined axes: B-axis: 200° / C-axis 360°).
The cut-off wheel guard is guided in parallel during the chop cut to increase the cutting capacity of the cut-off wheel. The large sliding and side door, with safety lock when the cutting disc moves, ensures the best possible access to the large machine table.
Recirculation cooling and automatic central lubrication are integrated in the machine body of the robust steel construction. The Qcut 600 BOT can also be equipped with a belt filter unit as an alternative to the recirculating cooling unit.
PRODUCT ADVANTAGES
- Highest degree of automation with dynamic cut-off wheel measurement and automatic adjustment of the cutting parameters
- Visual menu guidance for easy programming
- Any number of cut-offs with different components can be cut in one process
- Complex cutting sequences made easy - the rotation of the machine table eliminates the need for timeconsuming reclamping of the workpieces (patented)
- Expandable with additional rotary axis that can be adapted modularly
- Unlimited clamping possibilities with individually tailored solutions
- Generous access to the cutting chamber
FEATURES

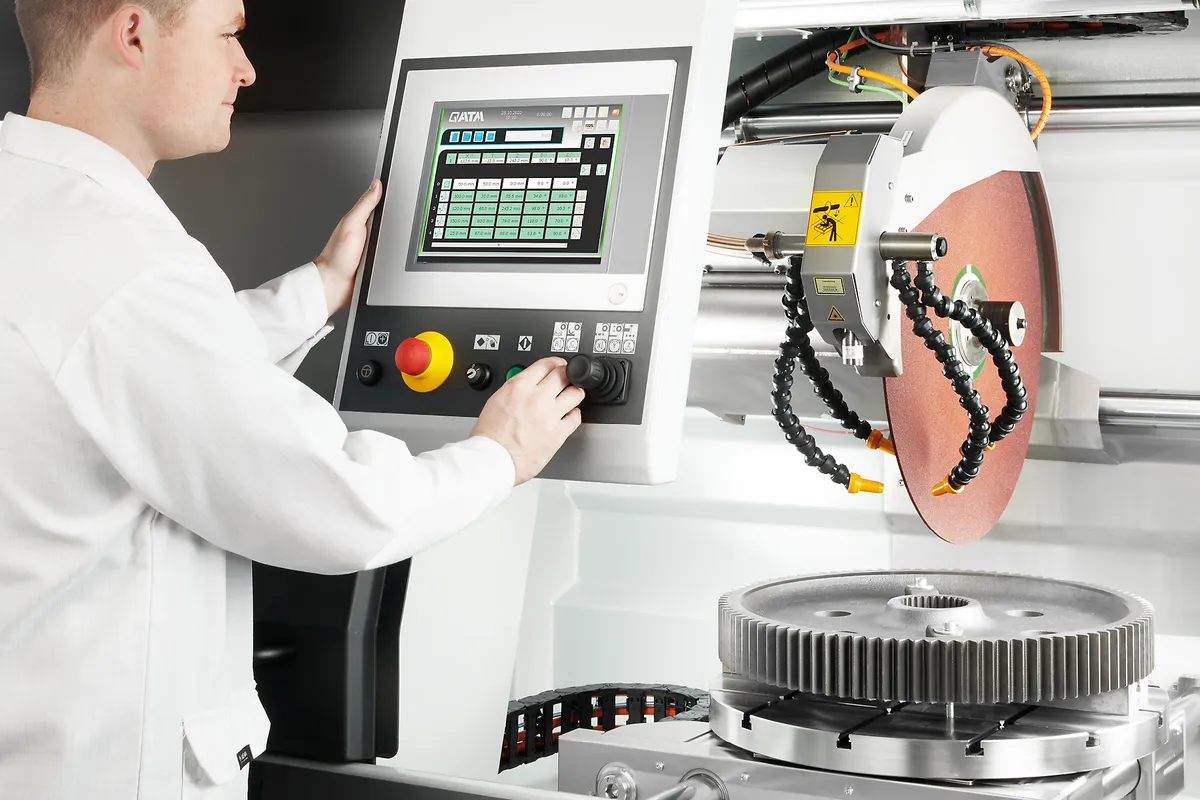

INTUITIVE AND EASY OPERATION
The teach-in function enables user-friendly programming of the of the cutting positions by approaching the individual positions. The multi-position process MPP allows the simultaneous positioning and automatic start-up of different components on the clamping table. This eliminates the need for timeconsuming reclamping of the components.
AUTOMATIC CUT-OFF WHEEL MEASUREMENT
The dynamic cut-off wheel measurement leads to reproducible cutting results with consistent quality. By automatically monitoring the current cut-off wheel diameter, the cutting parameters are adjusted after each cut so that the cutting speed and cutting depth remain constant.
CUTTING OPTIMISATION
In order to optimise the cutting quality, the machine automatically detects local material singularities, such as hardened areas, and regulates the feed rate depending on the cutting force. When starting a new cut, the component is automatically detected and approached at reduced speed (soft start-up control).
REMOTE MAINTENANCE
Direct fault diagnosis and online support from QATM can be provided via a VPN connection using an existing broadband internet connection.

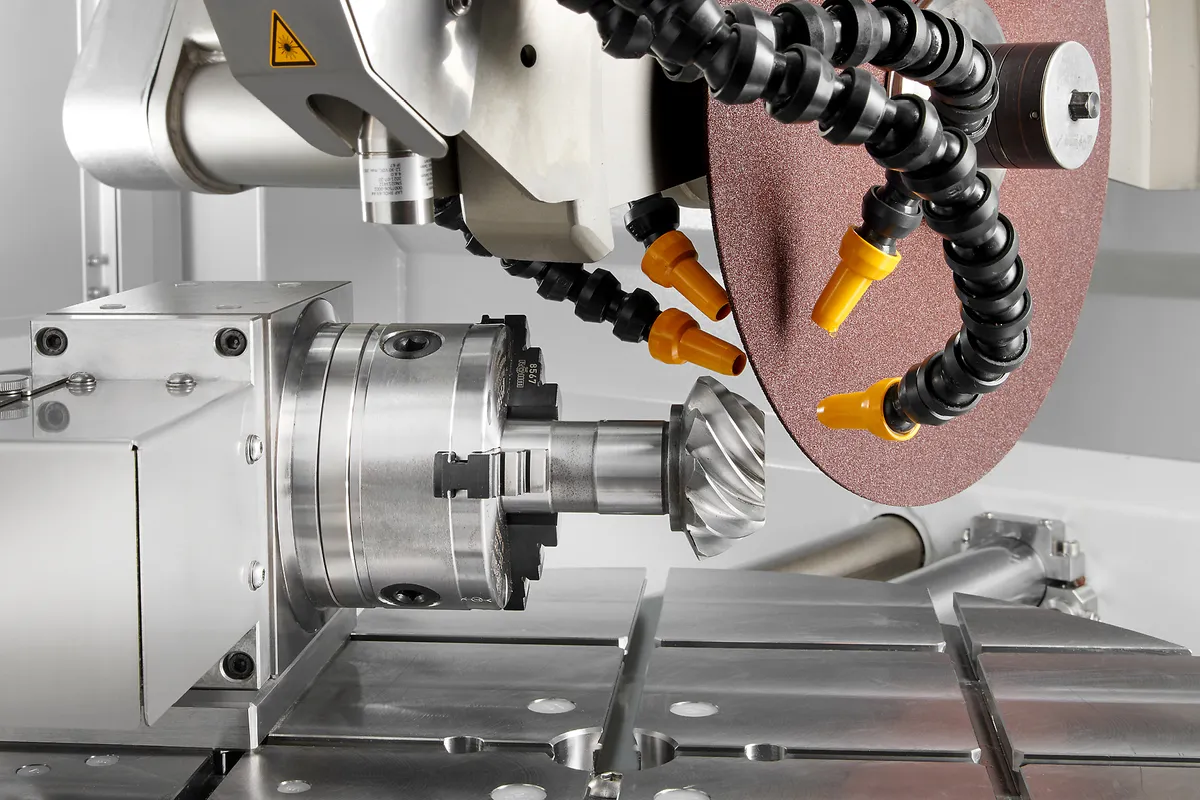

ADDITIONAL ROTARY AXIS
UNLIMITED CLAMPING POSSIBILITIES
The modular C-axis on the table opens up new possibilities to precisely position complex components. The patented solution of combined rotary axes eliminates the need for time-consuming reclamping and the use of additional clamping tools.
CUTTING WITHOUT RESTRICTIONS

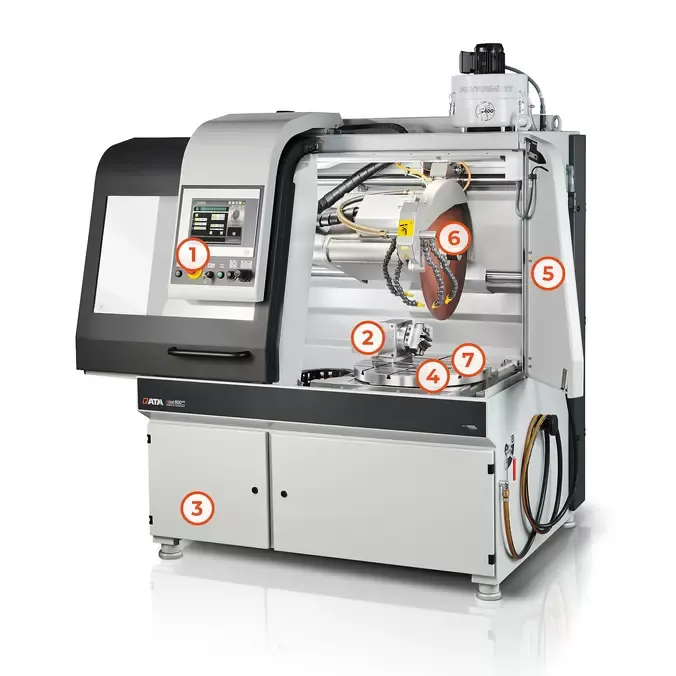

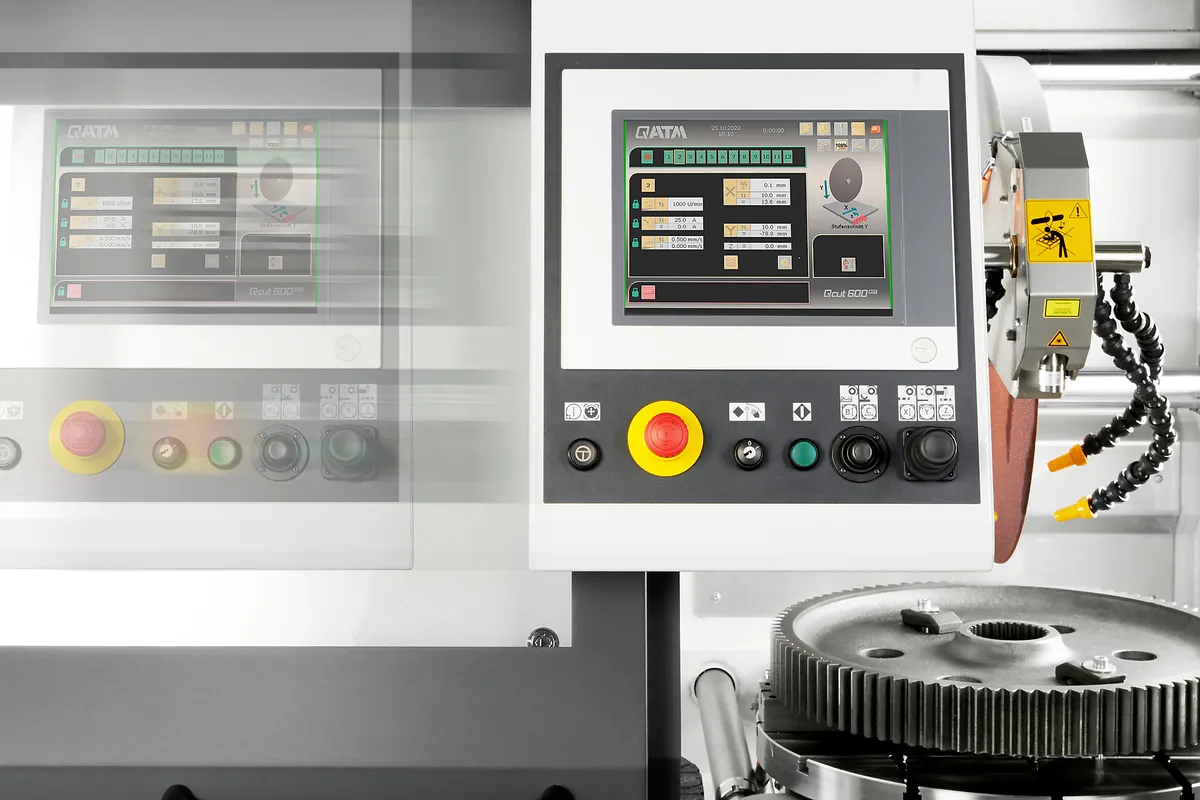

1. Ergonomic control panel
- Large 12.1“ TFT touch display
- Two joysticks for manual operation
- The sliding display enables clear working

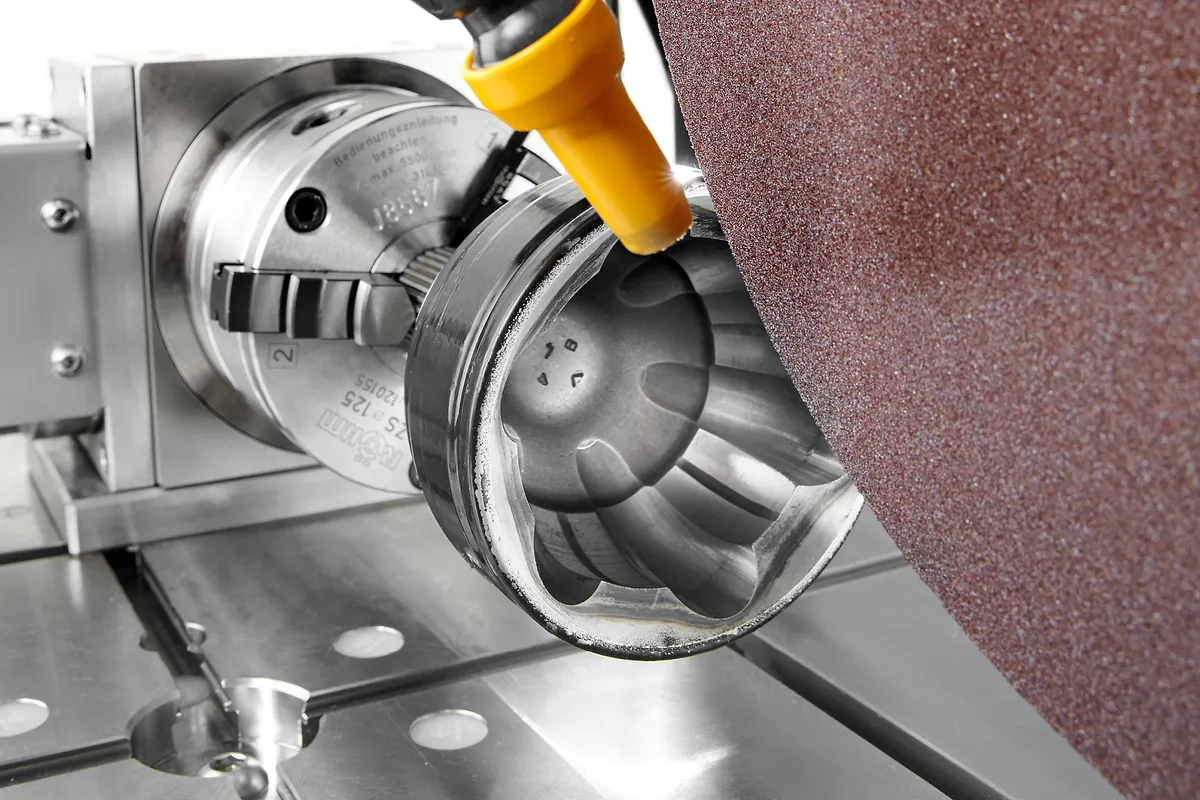

2. Optional axis of rotation C
- Rotation range max. 360°
- Modularly removable rotary axis
- Clamping possibility can be individually extended with lathe chuck or other clamping devices
3. Robust machine body
- With integrated recirculating cooling and automatic central lubrication
4. Large machine table
- Axes can be precisely positioned and fixed vibration-free in the cutting process
- Diameter: 600 mm
- Load capacity: 150 kg
- Travel: X/Z-axis: 550 mm
5. Side door
- Swivel door for free access to the cutting chamber
- Change of cutting disc via side door possible
6. Automatic cut-off wheel measurement
- Dynamic adjustment of the cutting parameters for optimum results
- Ideal utilization of the cutting space due to innovative transverse infeed via the swivel arm
7. Rotational axis B
- Rotation range 360°
- Rotation range with combined C-axis 200°
- Positioning accuracy: ±0.1°
